My post Coronation and Diamond Jubilee Goldwork described how technically difficult and time-consuming it is to embroider the incredible goldwork that can be seen on royal, religious, ceremonial and military robes.

Heralds - GoldworkReligious - Goldwork
Heralds - Goldwork
Heralds - Goldwork
Heralds - Goldwork

Above are some of the heraldic and religious ceremonial robes (many at least a hundred years old) from Tuesday’s Service of Thanksgiving at St Paul’s Cathedral for Queen Elizabeth II’s Diamond Jubilee.  All robes are heavily embroidered with goldwork and must have been extremely heavy and uncomfortable to wear.

Today’s post concludes the story of my own goldwork embroidery which I undertook under the tutorage of the Royal School of Needlework as part of their Certificate in Technical Hand Embroidery.

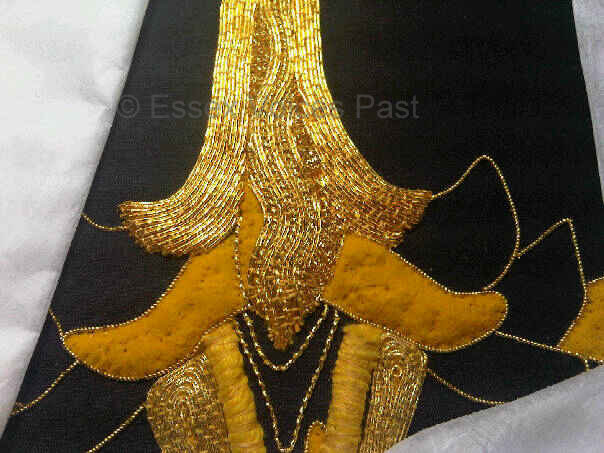

Royal School of Needlework - GoldworkDay 8 – chip work. The dents in all the yellow felt are where I’ve started or finished a thread. A new thread is started by doing several tiny stab stiches (starting on top of the work) in an area that is going to be covered up later with stiches. No knots and no starting or finishing on the back of the fabric! In fact the only time you turn the fabric over is when securing plunged gold thread

Royal School of Needlework - Goldwork

Day 8 – Not too much fluff on the work – although there’s a couple of areas where there’s beeswax in tiny smudges

Royal School of Needlework - Goldwork

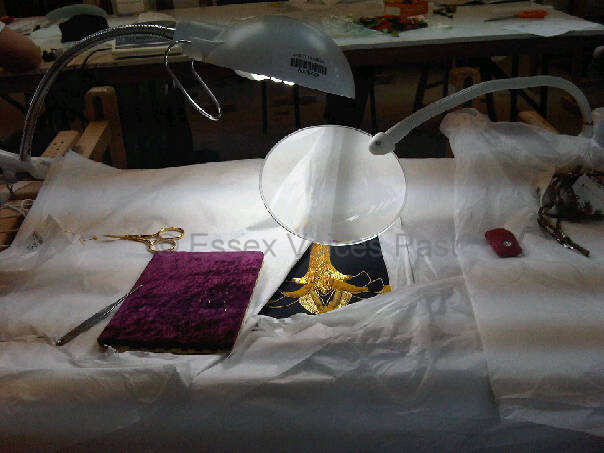

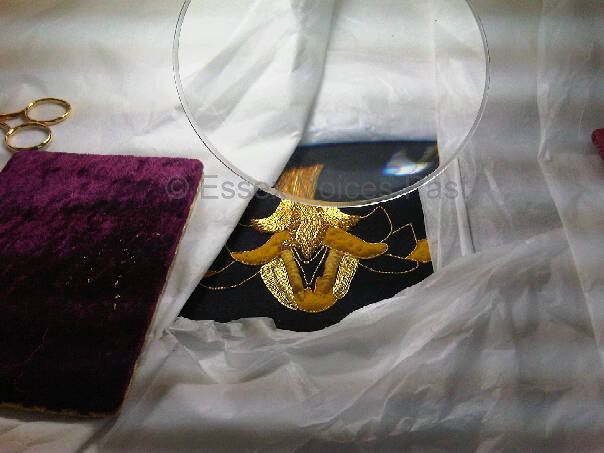

Day 8 – my working area. The metal object that’s part way on the purple velvet cutting board is called a mellor. It helps you to stop touching the gold and also to manovre the thread into exactly the correct place

Royal School of Needlework - Goldwork





Day 8 – the spots on the purple cutting board are a few gold chips ready to be sewn down

Royal School of Needlework - Goldwork







Day 8 – pins marking out the exact place where the spangles are going to be sewn down

Royal School of Needlework - Goldwork

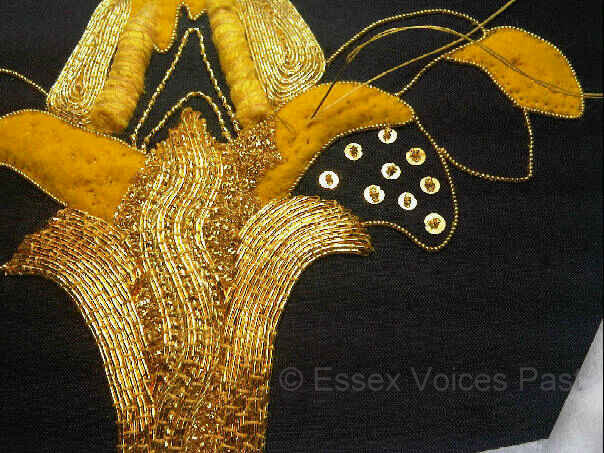

Day 8 – first set of spangles. Each are sewn down with a tiny gold chip of bright check placed in the middle

Royal School of Needlework - Goldwork

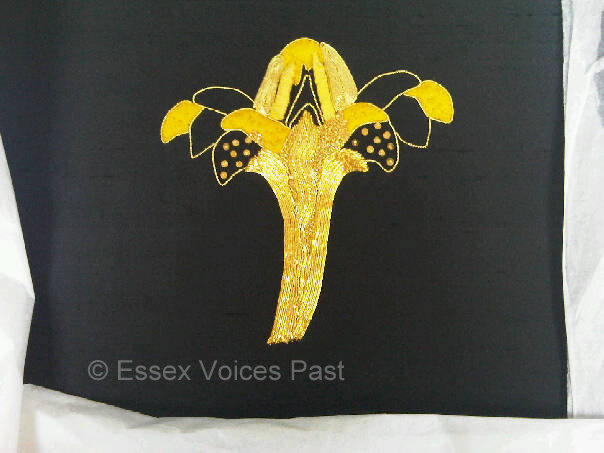

Day 8 – both sides with spangles & gold chips

Royal School of Needlework - Goldwork

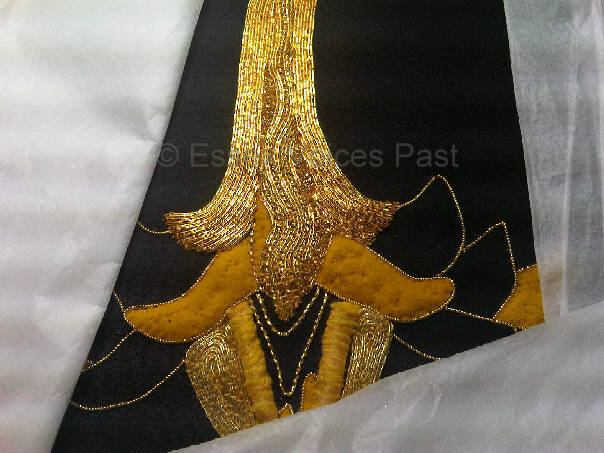

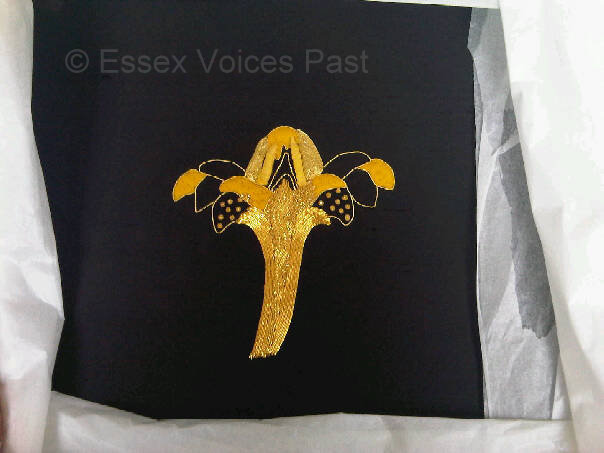

Day 8 – so much tissue paper to protect my work!

Royal School of Needlework - Goldwork

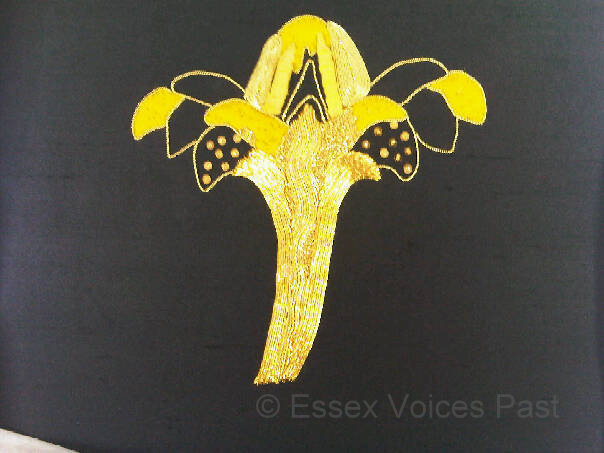

Day 8 – more chipping needed! However, the race is on because the gold threads already embroidered will start to tarnish (particularly in the chipping area) but the new bright check thread to be turned into chips will be all bright and shiny. It all needs to tarnish at the same rate.

Royal School of Needlework - Goldwork



Day 8 – all goldwork will eventually tarnish – some areas faster then others depending on the alloy in each type of metal thread. This is accelerated the more the threads are touched as moisture, grease etc from hands are transfered onto the threads and will spead up the tarnishing process. All gold thread should be kept in glycerine bags and then kept in a dark box/cupboard. Plastic bags should not be used because of moisture in the bags will attack the thread.

Royal School of Needlework - GoldworkDay 8 – looking good! Although according to the RSN by the end of day 8 my work should be finished and mounted ready for marking. However I had to do a lot of work at home and completed all the chipping areas during several lengthy sessions of sewing just the bright check beads. This was surprisingly very therapeutic and I did the embroidery whilst listening to the audiobook of Hilary Mantal’s Wolf Hall on my iPod!

Royal School of Needlework - Goldwork

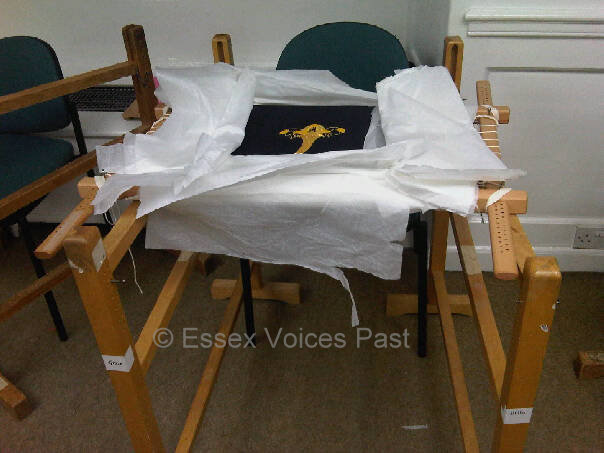

Day 8 – RSN trestles used for resting the slate frame on. These trestles are hand made for the RSN and are nearly £400 per set!!

Royal School of Needlework - Goldwork

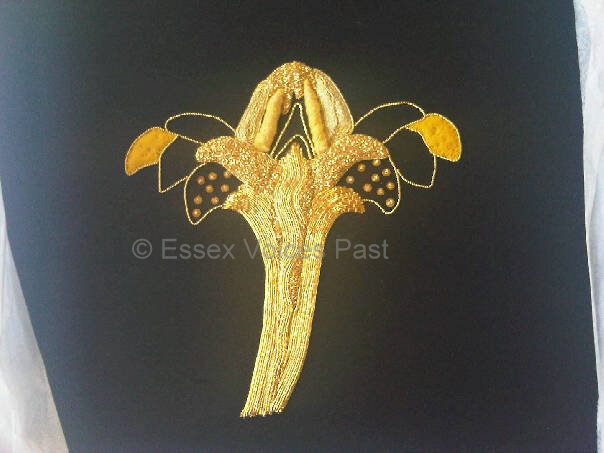

Homework – Crown all done in bright check chips. The two ‘leaves’ above both sets of ‘spangled’ leaves are now fully bright check chipped. This all took about 7 hours to do

Royal School of Needlework - Goldwork

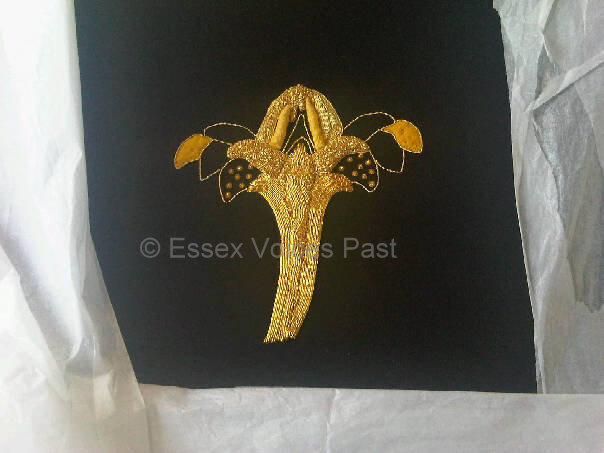

Homework – Only two areas of yellow felt now left to be sewn with bright check chips

Royal School of Needlework - Goldwork







Full of Essex girl bling!

Royal School of Needlework - Goldwork

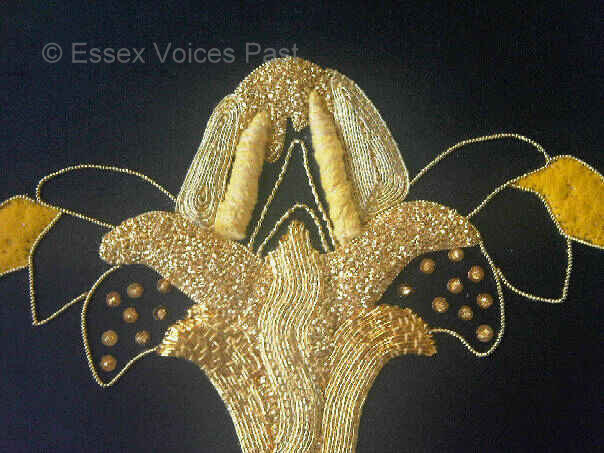

Nearly finished – all the bright-check chip work is finished

Royal School of Needlework - Goldwork









Only the gold cut-work to be done on over the yellow soft-string padding

Royal School of Needlework - Goldwork

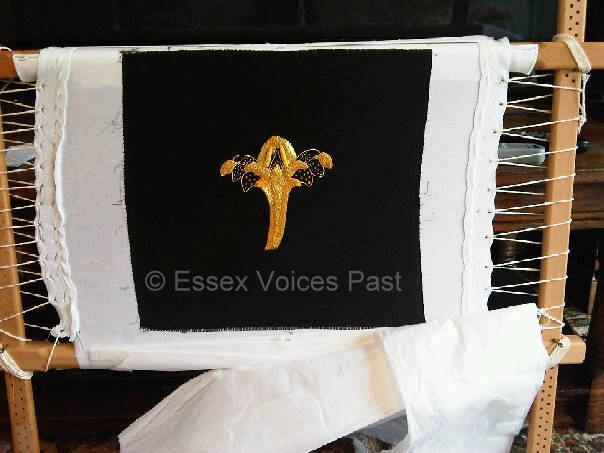

Still in it’s embroidery frame. The work has to be cut from the frame and then properly mounted.

Royal School of Needlework - Goldwork









Bling!

Royal School of Needlework - Goldwork







The remaining area to be embroidered

Royal School of Needlework - Goldwork

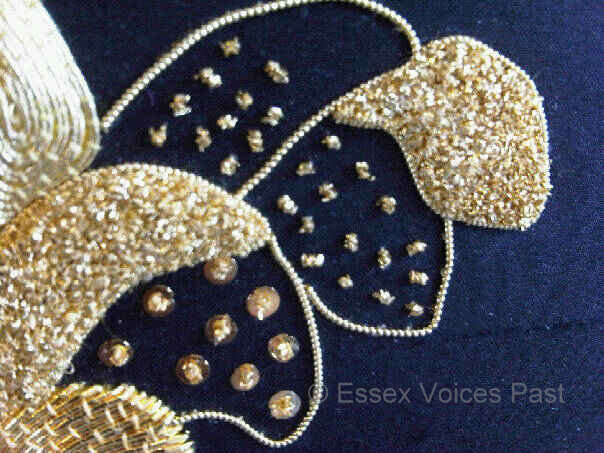

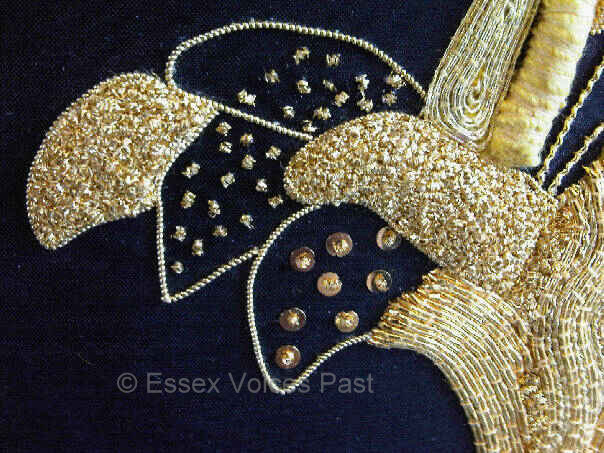

Spangles and bright-check chips

Royal School of Needlework - Goldwork









More spangles and chips

Royal School of Needlework - Goldwork

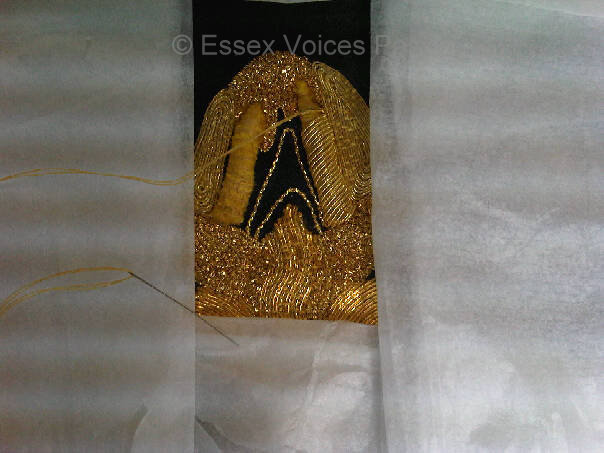

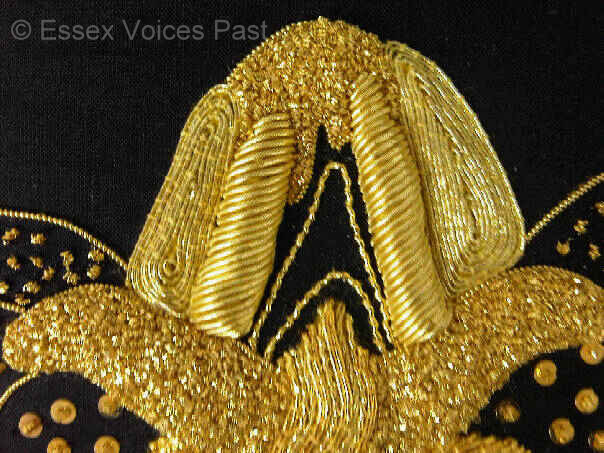

Day 9 – Cutwork – This part was by far the hardest to do. The few stiches in this picture took me nearly 3 hours! The gold splits and cracks very easily. If that happens, the stitch has to come out and a new piece of gold has to be cut and sewn in.

Royal School of Needlework - Goldwork

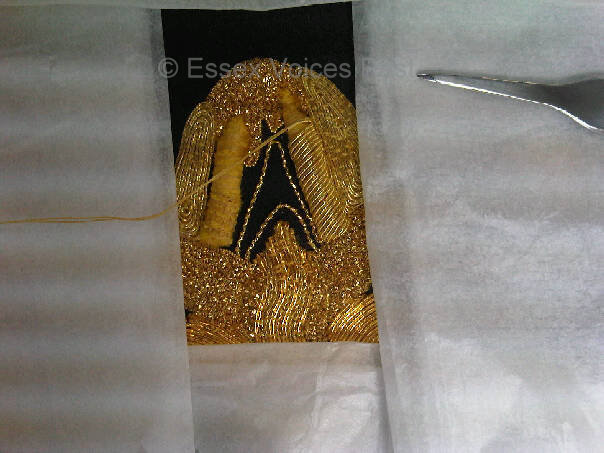

Day 9 – Cutwork – The gold has to be cut to the exact length – 1mm too long and the gold will crack & split as it is sewn in. 1mm to short and you will be able to see a gap. Both not allowed and will be marked down. So it’s precise work. The angle has to be perfect to. I have the habit of flipping my angles (I’m dyslexic and dyspraxic) and I find it very difficult to keep the correct degrees

Royal School of Needlework - Goldwork

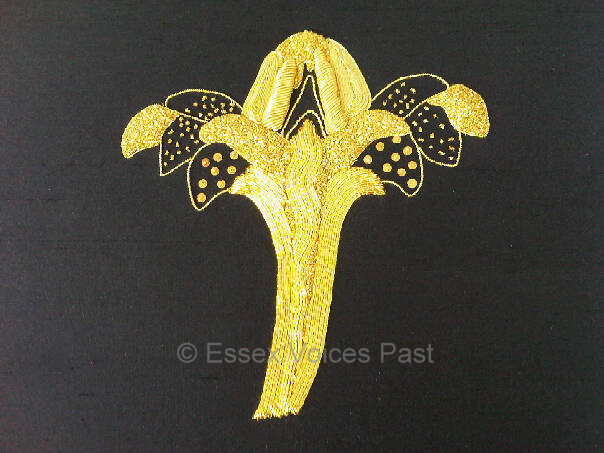

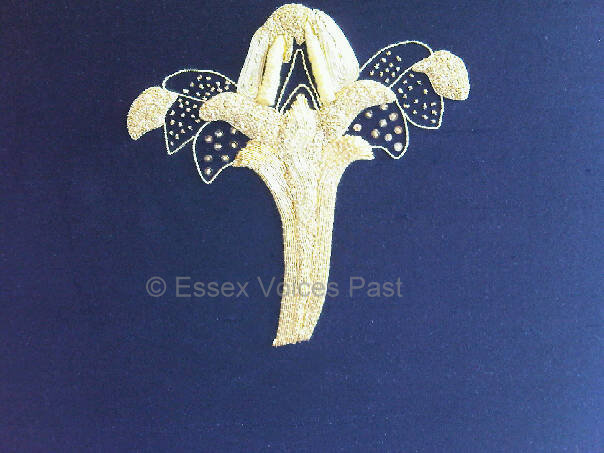

Day 9 – Embroidery finished.

Royal School of Needlework - Goldwork









Day 9 – Cutwork – another problem is that you very easily loose your bearings on where the needle is going to come out (as you can’t “feel” the needle from the top side). Quite a few times, my needle came out exactly in the middle of a piece of gold – which, of course, then splits it and wrecks the stitch. So out comes the stitch! For every stitch you see on my dialgonal cut work, at least 3 others had to be ripped out and resewn. These 2 strips of cutwork took me 6 solid hours to do!

Royal School of Needlework - Goldwork

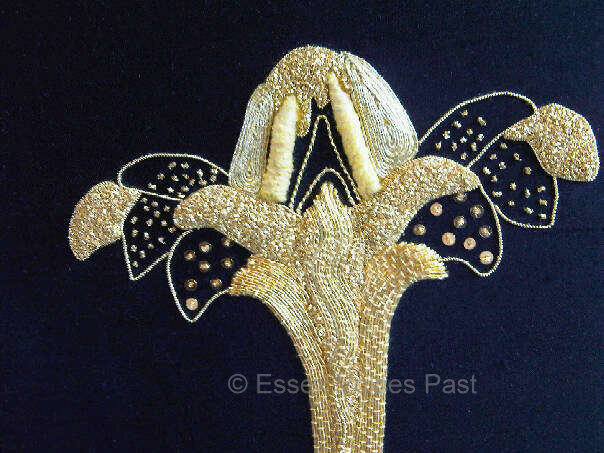

Day 9 – Top section

Royal School of Needlework - Goldwork









Day 9 – Bottom section

Royal School of Needlework - Goldwork

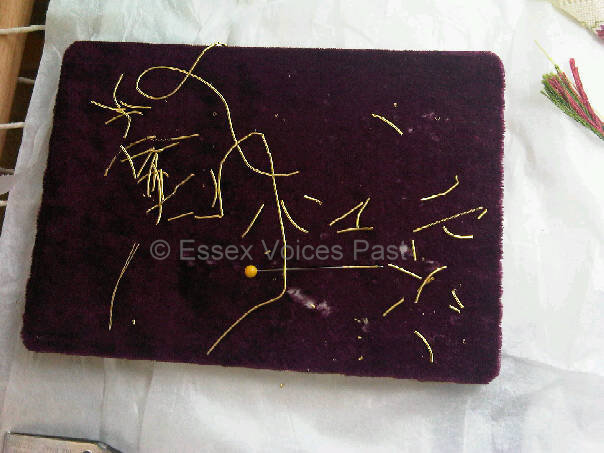

Day 9 – The debris from doing my cutwork. Lots and lots of pieces of gold that I’d either a) sewn in and then had to rip out (too short, too long, cracked, split, uncoiled) or b) had cut but never got to sew them in because they were wrong (eg split when they went on the needle or cracked because I looked at them the wrong way!)



Part of the Certificate in Technical Hand Embroidery is to learn how to properly mount a piece of fine embroidery (without glue,cello-tape or staple gun!!).  This part of the course was just as hard as the embroidery and required brut force at many stages to force my embroidery to come together properly.

Royal School of Needlework - Goldwork



Day 10 – Mounting. My work is still in it’s embroidery frame. So here I’m using paper to meausure out how big the mount is going to be

Royal School of Needlework - Goldwork





Day 10 – Mounting. A running stitch is sewn all along the edge of the paper to give guidelines. This photo shows the running stitch on the right hand side of the work

Royal School of Needlework - Goldwork

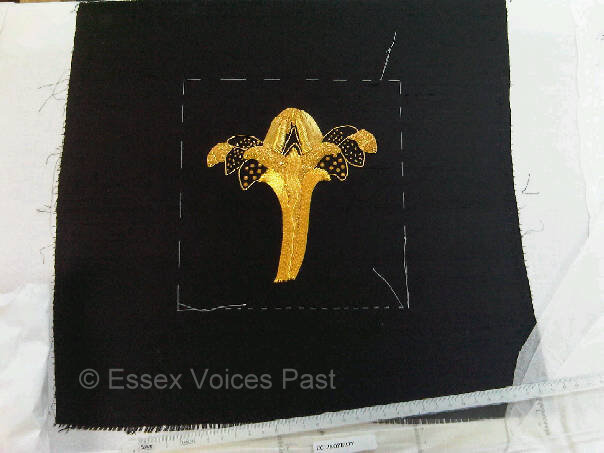

Day 10 – Mounting. The running stitch is now marking out where the mount is going to be

Royal School of Needlework - Goldwork

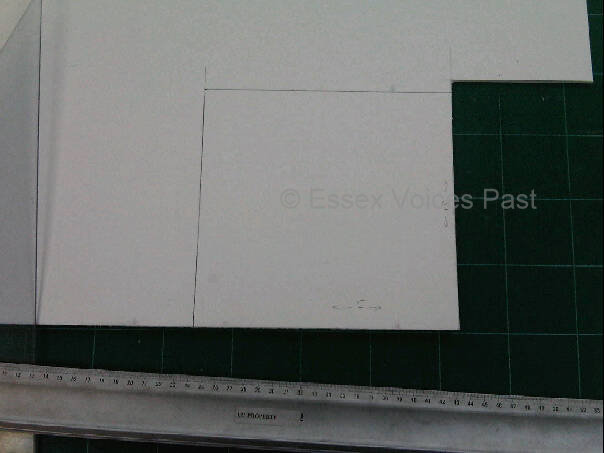

Day 10 – Mounting. Measuring and cutting out the carrdboard mount. This is extremely thick conservation cardboard (either class 1 or Class A – can’t remember which)

Royal School of Needlework - Goldwork





Day 10 – Mounting. Underneath the cardboard is wadding. I can’t remember it’s name but it’s a type of wadding that I’ve never seen before – it looks a bit like a very soft baby’s wool blanket. Then a piece of calico is glued into place. Only a tiny bit of glue is used in strips just on the back of the cardboard. Of course it’s conservation glue!

Royal School of Needlework - Goldwork

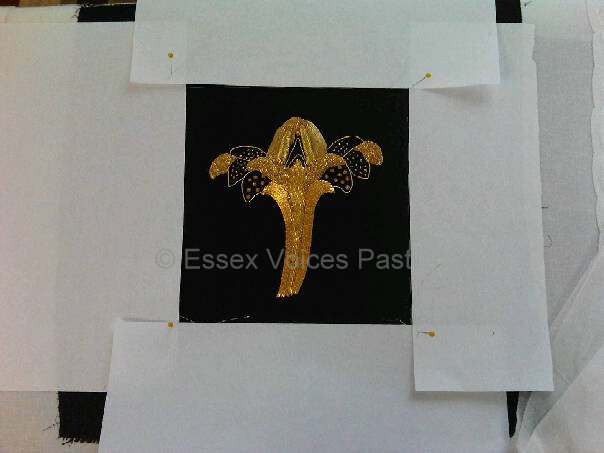

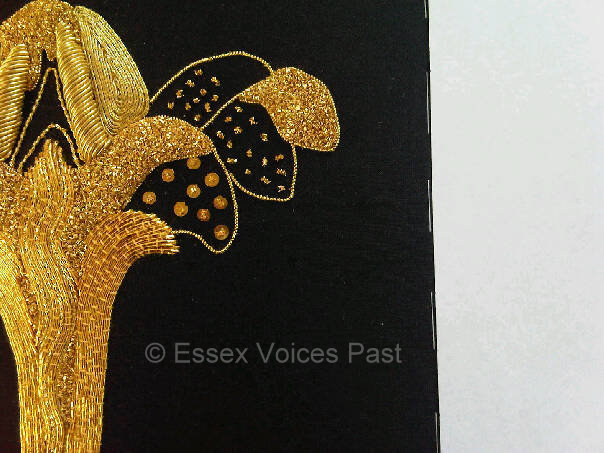

Day 10 – Mounting. The top of my work is being pinned into place. But first it had to be very carefully unpicked from the slat-embroidery frame. The grain has to be even all the way around and no lumps or bumps anywhere. This was very time consuming and took over an hour just to get the fabric correctly placed with the grain exactly right and the pins all put in. The photo here shows only half the pins that the work ultimately had to have!

Royal School of Needlework - GoldworkDay 10 – Mounting. Yikes. My work has had to be placed on a cushion of well-bundled up bubblewrap so that I can put it face down to work on it. The outside white fabric (with the black stitches) is the calico that my work was original stitched onto back on Day 1 and is the backing. There are hundreds of pins are all around the edge of the work attaching the work to the calicoed-board

Royal School of Needlework - Goldwork



Day 10 – Mounting. Excess fabric has been removed. This photo shows the start of the mitring of the corners – all of which are being pinned into place. The hands aren’t mine but my tutors (I needed help with this!)

Royal School of Needlework - Goldwork

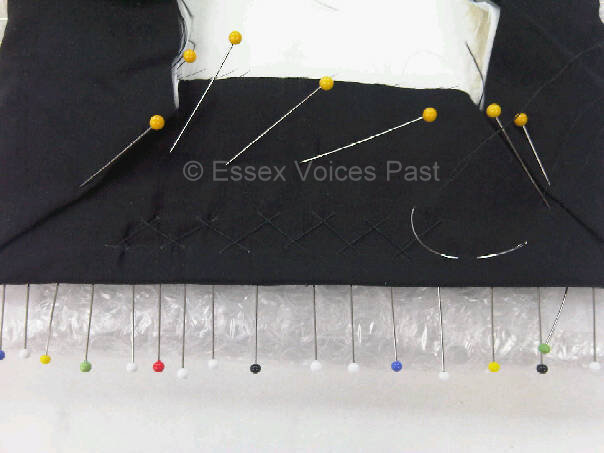

Day 10 – Mounting. Look closely and you will see black herringbone stitches along the edge. The corner is about to be mitred using slip stitches.

Royal School of Needlework - Goldwork





Day 10 – Mounting. This particular corner was a nightmare as the stitches have to be pulled really taut and my thread snapped twice doing this which meant I had to unpick and start the corner again. As it was 5pm, I gave up had to start again the next day/ This has to be done all the way around and then a nice backing of a material called “sateen” slip-stitched onto the back.

Royal School of Needlework - GoldworkDay 11 – Mounting. Using black double-threaded-waxed gutermanns thread didn’t work as it kept snapping on the corners. So instead I had to use white button-hole thread- much much stronger. The herringbone stitch shown on the back was covered up so it didn’t matter that it’s highly visible. The corners are slip-stitched and pull together so no thread is visible at all

Royal School of Needlework - Goldwork

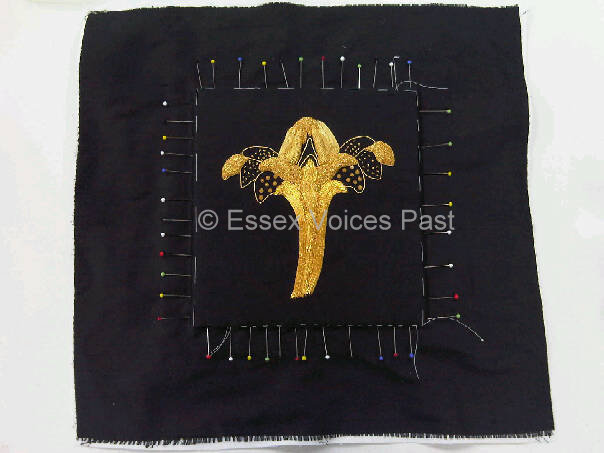

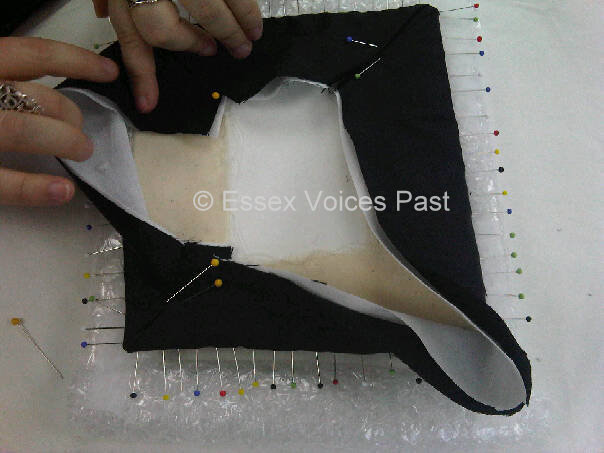

Day 11 – Mounting. Corners and excess fabric being cut back

Royal School of Needlework - Goldwork

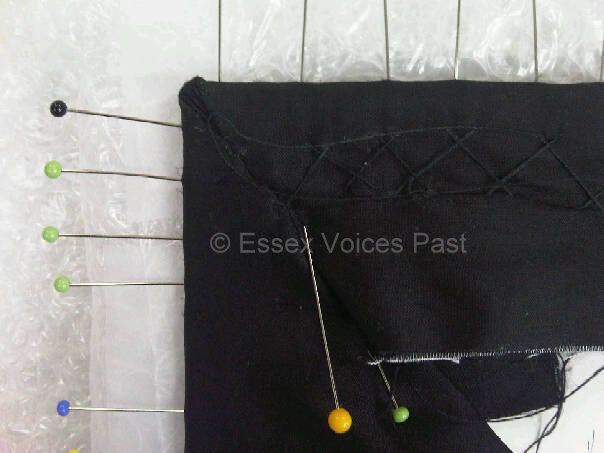

Day 11 – Mounting. Slip stiching the corner

Royal School of Needlework - Goldwork

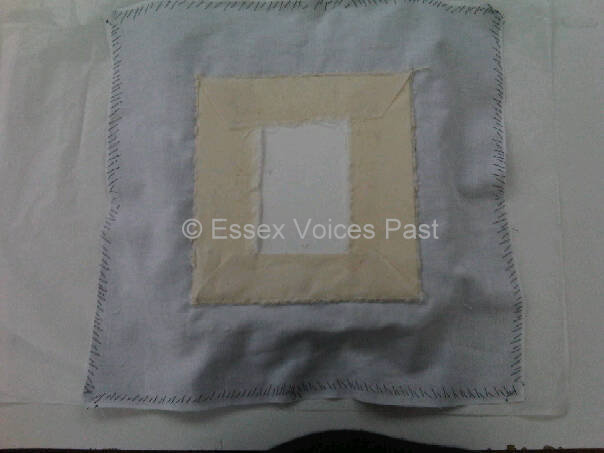

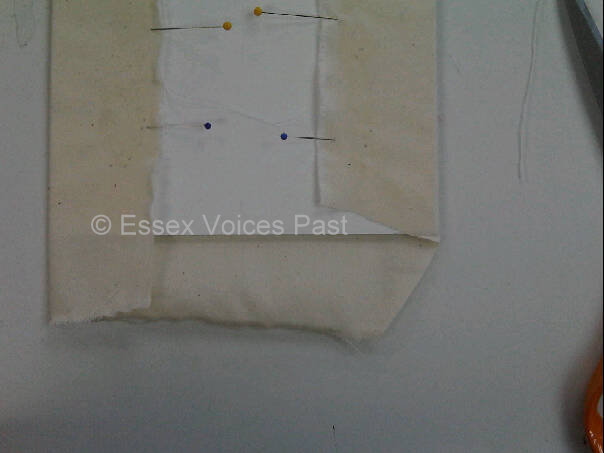

Day 11 – Mounting. The white backing folded to size and then pinned to the back. I could have used black silk backing material but as it was my first marked piece, I was advised to use a white backing material

Royal School of Needlework - Goldwork

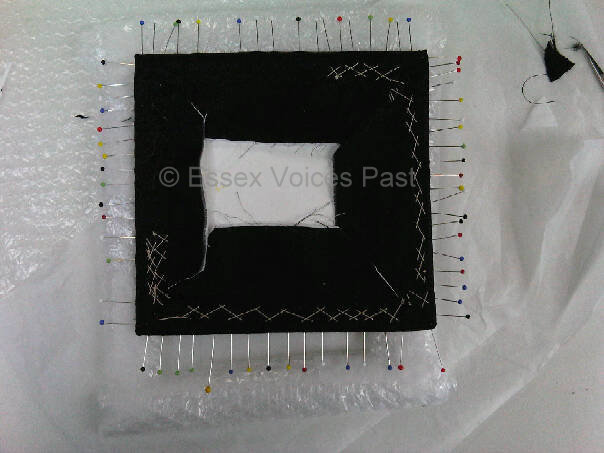

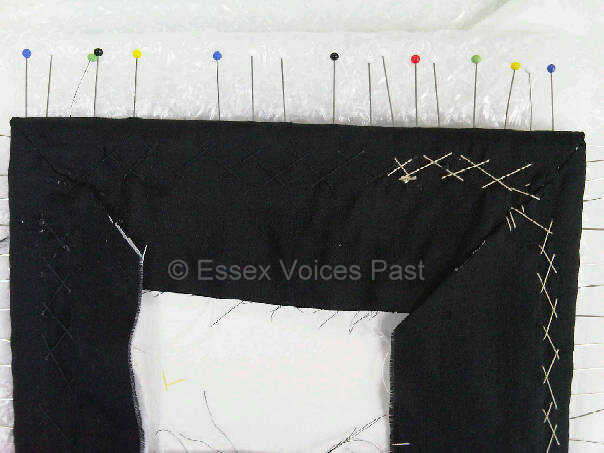

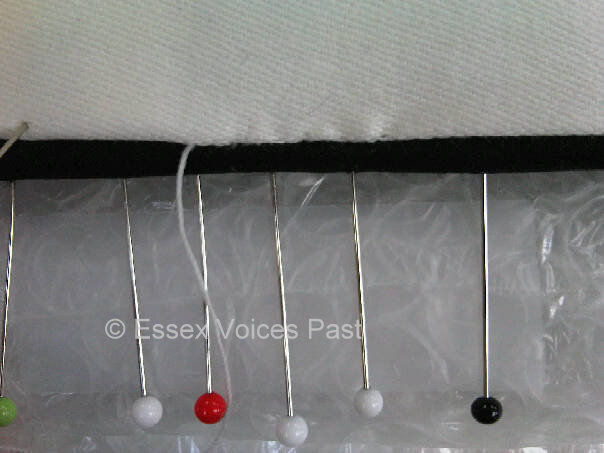

Day 11 – Mounting. Working from right to left, the area between the black pin and the red pin has been stitched into place with slip-stitches. Yeah – you can’t see my stitches!!!

Royal School of Needlework - Goldwork





Day 11 – Mounting. The backing has been slip stiched on

Royal School of Needlework - Goldwork

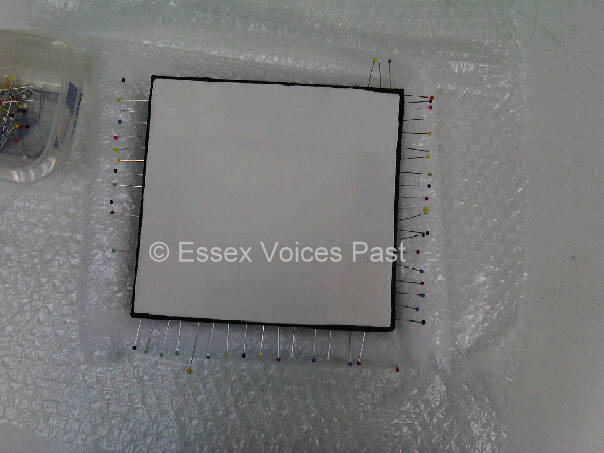

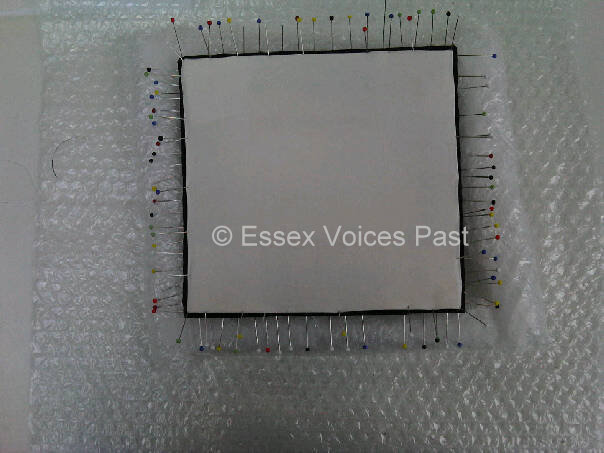

Day 11 – Mounting. Yeah – pins removed and the backing is all there! It’s taken so much effort to get the mounting and back done to perfection that I think I’ll frame it with glass on the back of the picture as well as on the front. That way I can flip the picture over onto the back so that people can admire my beautifully tiny stiches on the back!

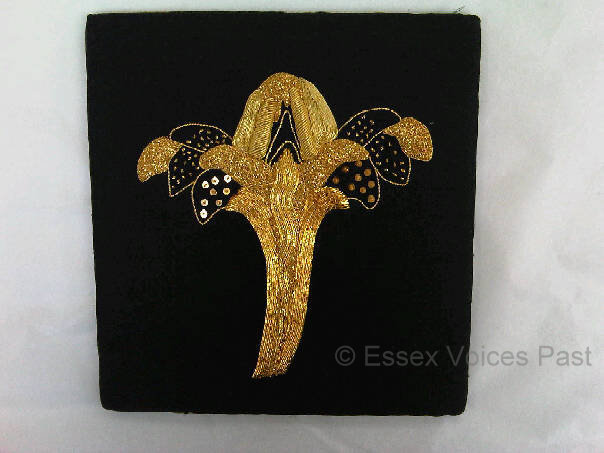

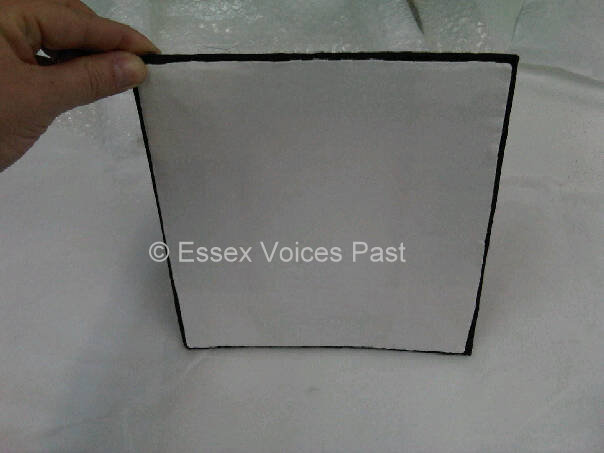

Royal School of Needlework - GoldworkDay 11 – Mounting. That’s it!! All done and finished. The final task was to remove all the pin holes around the edge of the work and remove any fluff etc on the work. My work was handed handed in and marked by 2 RSN-trained graduates and an external marker. (I got in the mid 70s%)

I finished this work sometime in 2010 but unfortunately have not been able to get back to the Hampton Court because of personal commitments. During 2011, in the days immediately after the Royal Wedding of Prince William and Kate Middleton, the Royal School of Needlework was in the media spot-light because they made the beautiful lace in Kate’s dress. The course director of the  Certificate in Technical Hand Embroidery (who, along with many other extremely talented tutors, had personally embroidered & made the lace for Kate’s wedding dress) contacted me and asked if the RSN could use my work in their display cases to show off the work of their students. I am very proud to say that my William Morris Flower is now in the display cases in the studios at the Royal School of Needlework in Hampton Court for visitors to look at.

My posts over the last couple of days have, I hope, shown the story of just one piece of goldwork. The next time you look at military, religious or royal robes embroidered with gold, think of those ladies (and men) of the Royal School of Needlework busy embroidering in their beautifully historic William and Mary apartments at Hampton Court. The RSN may not have been totally responsible for the craftsmanship in the ornate robes you saw in all the pageants that were part of this weekend’s Diamond Jubilee Celebrations.  However, most likely one or more hardworking and extremely skilled craftsman responsible for those spectacular robes was probably trained at this incredible school.

The Lord Chancellor’s Purse for the Queen’s Speech

Royal School of Needlework - GoldworkThe Lord Chancellors Purse.

I wish I could say I embroidered this! But I didn’t. But I did get to touch it (gently and carefully) when I was at the RSN. This is a beautiful piece of State goldwork that the RSN first embroidered in 1984. It was brought to the RSN in 2010 for repair work before that year’s State Opening of Parliament. The top left tassel was very worn and needed repairing. Some of the embroidered goldwork needed replacing. The whole piece was very dusty and needed a good spruce up. What this photo doesn’t convey is that it is very large (for a purse!) and is in 3D. It’s about 3 foot square. It is also very heavy and the back shows a lot of wear and tear because whoever held it, had to balance it because of its weight (there is a much-worn handle on the back). The Lion and the Unicorn are both gold-stump work figures – ie heavily padded figures (padded with carpet-felt) that were made separately and then sewn onto the purse. The figures down the edges are the heads of angels and have the most beautiful faces. Again these are padded figures created separately and then sewn on. The stumpwork figures are about 2-3 inches in depth. The coat of arms uses a fabric called “Cloth of Gold” which, as the name implies is fabric woven with gold and is about £200 a metre. It is used by the Lord Chancellor to hold the Queen’s speech during the State Opening of Parliament.

And I got to admire and touch it!!

© Essex Voices Past 2012-2013.

Coronation and Diamond Jubilee Goldwork

Coronation of Elizabeth II

Have you ever wondered how the beautiful Coronation robes were embroidered with such magnificent goldwork? Or how Kate Middleton’s dress was embroidered so beautifully for her wedding to Prince William?  Or how was the amazing goldwork done on robes of the Herald’s of the Queen’s Diamond Jubilee Pageant? Embroidery on royal or military robes and garments are incredible works requiring great skill and craftsmanship.

Queen's Diamond Jubilee Heralds

The only people able to embroider to such a high level of excellence are, of course, those trained by the remarkable  Royal School of Needlework based in Hampton Court Palace.

Whilst I can never claim to being as skilled and as experienced as the embroiders (known as ‘apprentices’) who made the Queen’s Coronation Robes, I can claim first-hand knowledge of how difficult it is to do goldwork embroidery – and how rewarding it is.  In 2010-2011, before my dissertation took hold of all my time and attention, I was fortunate enough to attend my first (out of four) embroidery techniques that comprise the Royal School of Needlework‘s Certificate in Technical Hand Embroidery.  The technique I choose to be my first (and to date, only technique) was goldwork.

To celebrate the final day of the Queen’s Diamond Jubilee weekend, my post today is images of my time at the Royal School of Needlework.  I hope these photos convey how technically difficult it is to do goldwork embroidery.
Royal School of Needlework - Goldwork



Day 1 – Finding a source for my work. I love the work of William Morris, so chose this pattern
Royal School of Needlework - Goldwork







Day 1 – the tiny portion of the amazing William Morris pattern which will form the basis of my work
Royal School of Needlework - Goldwork









Day 1 – Framing up. Attaching calico to a “slate” frame (which isn’t made of slate!)
Royal School of Needlework - Goldwork









Day 1 – Still framing up – this took hours!
Royal School of Needlework - Goldwork









Day 1 – My stitches aren’t very neat but it doesn’t matter because when I’d finished the work, I cut these stitches to remove the work from the frame
Royal School of Needlework - Goldwork





Day 1 – My design – this has been “pricked” so I can “pounce” it with white powder made from cuttlefish. The tracing is covered all along the design with
tiny pin-pricks about 2mm apart.
Royal School of Needlework - Goldwork





Day 1 – My black silk has been sewn to the calico backing (this took a couple of hours to do). Then the pricked tracing is placed over the black silk and “pounced”. The pounce is made of finely ground cuttle-fish which is then smeared over the tracing so the pounce falls through the tiny holes and leaves an outline on the black silk

Royal School of Needlework - Goldwork



Day 1 – All ready for the outline to be painted on.
Royal School of Needlework - Goldwork







Day 1 – This was so tricky as I don’t have a steady hand. Using a very fine paint-brush, the outline of the design is painted onto the black silk. It’s a bit too thick in place and too fine in others. When the goldwork is embroidered onto the fabric, it has got to cover all the paint lines so no lines are showing.

Royal School of Needlework - Goldwork





Day 1 – All framed, painted and ready to start…
Royal School of Needlework - Goldwork







Day 1 – My first bit of padding – a lot of the goldwork has padding underneath the metal threads to raise it up from the surface. This strip has 4 pieces of felt sewn down one on top of the other.
Royal School of Needlework - Goldwork





Day 1 – Some of the yellow padding. Most of this work has padding all over it before the gold can be applied.
Royal School of Needlework - Goldwork







Day 2 – It took me all day to sew the felt padding.
Royal School of Needlework - Goldwork







Day 2 – The 2 far out leaves have 2 layers of felt padding. The middle (of 3) long down felt padding is 4 layers, either side of this, it’s 1 layer. The 2 leaves on top/next to the down felt is also 4 layers. The top triangles are 3 layers. The upside down “crown” at the top has 3 layers of tiny circles and the 1 layer of upside down crown.

Royal School of Needlework - Goldwork



Day 2 – Urgh. I can’t believe how much fluff is on my lovely black silk!





Royal School of Needlework - Goldwork



Day 3 – Soft string padding. This is about 15 strands of thick soft string, heavily waxed with bees wax and then twisted together and tightly sewn down. It was a pain to do!

Royal School of Needlework - Goldwork









Day 3 – The beginnings of the 2nd section of waxed soft string

Royal School of Needlework - Goldwork







Day 3 – By the end of this day, a lot of my beautiful paintwork had started to brush off. Under the 2nd section of soft string, it had disappeared totally so the yellow lines you can see are from the tacking lines I’ve had to sew in to get back the outline

Royal School of Needlework - Goldwork



Day 3 – Lots and lots of tissue paper surround my work so it doesn’t get dirty! I get marks deducted if it is dirty or has wax marks on it. My little pin keep I made myself – it’s so handy.

Royal School of Needlework - Goldwork





Day 4 – On this day, I got to couch down some Japanese gold thread

Royal School of Needlework - Goldwork









Day 4 – All those little “tails” of gold thread had to be taken through the black silk and secured to the back of the picture. Taking the threads through the background fabric is called “plunging”

Royal School of Needlework - Goldwork





Day 4 – 2 sides of the stem are now done

Royal School of Needlework - Goldwork











Day 4 – The camera doesn’t really show the couching stiches. They are done in a “brick” stitch pattern





Royal School of Needlework - Goldwork



Day 5 – Middle section all couched down. Loads of tails that all need plunging

Royal School of Needlework - Goldwork











Day 5

Royal School of Needlework - Goldwork









Day 5

Royal School of Needlework - Goldwork







Day 5 – middle wavy section is three different threads – rocco, Japanese and twist

Royal School of Needlework - Goldwork







Day 5 – Bottom of stem have been plunged. Gold threads have been taken through to the back of the fabric by using a lasso of strong button-hole-cotton. The gold thread is threaded through the lasso and then the lasso is pulled tight from the other side of the fabric and with any luck the gold thread will pop through to the other side.

Royal School of Needlework - Goldwork





Day 5

Royal School of Needlework - Goldwork







Day 5- The back of the work with lots and lots of gold threads

Royal School of Needlework - Goldwork









Day 5

Royal School of Needlework - Goldwork









Day 5 – Every thread has been plunged (this took about 4 hours to do them all)

Royal School of Needlework - Goldwork









Day 5 – The back of the fabric. Now all these threads had to be securely sewn down in little bundles and the ends snipped off.

Royal School of Needlework - Goldwork





Day 6 – back of the fabric – top section of threads have been sewn down. Bottom section awaiting to be done

Royal School of Needlework - Goldwork







Day 6 – the only way to sew these little bundles of gold thread down is by using a curved needle. Using a straight normal needle is nearly impossible as the fabric is so taught and the gold threads so thick

Royal School of Needlework - Goldwork





Day 6 – Last few bundles to be done

Royal School of Needlework - Goldwork











Day 6 – All done

Royal School of Needlework - Goldwork







Day 6 – Sewing down the bundles took about 4 hours. Great care has to be taken where each bundle is sewn down to – its got to be on areas that doesn’t have to be sewn over later on. If I got it wrong, I’d be pushing a needle through fabric and the thick bundles of gold thread (ouch!)

Royal School of Needlework - Goldwork



Day 6 – Back to the top of the fabric. I’ve now outlined the left side leaves in pearl purl (or is it purl pearl?) Each leave is indiviually done and I had to work out which line belonged to which leaf

Royal School of Needlework - Goldwork





Day 6 – Close up of the pearl purl. My camera shows all the tiny piece of beeswax and fluff from the felt. The felt “leaks” fluff all the time. The pearl purl is sewn down with heavily bees-waxed cottom to make it stronger. It leaves tiny traces of bees-wax behind on the fabric. The next day’s job was to remove all the fluff and bees-wax from my work.

Royal School of Needlework - Goldwork



Day 6 – I did the gold swirlie bit on the right of the picture last minutes on day 5. But then I realised I hadn’t done it properly because I tried to loop around in curves at the top of swirlie bit but it just looked awful. So I had to unpick this entire section.

Royal School of Needlework - Goldwork



Day 7 – the re-sewn embroidery so that the swirls follow round and round in a spiral. It still wasn’t perfect – too much space between each swirl – but had to do.

Royal School of Needlework - Goldwork









Day 7 – both sides are now done in swirlie loops using gold passing thread.

Royal School of Needlework - Goldwork





Day 7 – from this close up you can see the swirls are by no means perfect. After I took this photo, the tutor had a good prod and poke arouond and evened up my swirls. The long gold thread hanging off to the left of the picture is pearl purl – used to outline things. Hard work couching it down as you have to pull the waxed thread through the little tiny gaps (pearls). The stitches end up being about 1mm in length

Royal School of Needlework - Goldwork



Day 7 – all the pearl is done. And 2 arches of rocco gold thread added to the black part at the top

Royal School of Needlework - Goldwork









Day 7 – so the 2 sides aren’t symmetrical! But it’s a flower and not supposed to be symmetrical.

Royal School of Needlework - Goldwork



Day 7

Royal School of Needlework - GoldworkDay 7











Day 7 – This thread is called bright check. It’s cut into tiny tiny little beads that are then sewn down over the felt

Royal School of Needlework - Goldwork







Day 7 – this was to be cut into tiny tiny beads and then sewn down over the remaining yellow felt

Royal School of Needlework - Goldwork





Day 7 – half way down the thread is a bead cut from the bright check. The bead is about 2mm in length. That whole tiny area has to be full of hundreds beads with no spaces of yellow left

Royal School of Needlework - Goldwork





Day 7 – by the end of each day, my eyes were so tired that I just couldn’t see my goldwork anymore! The tiny gold mark towards the right (by the tissue paper) is where the bright check has very slightly frayed as it’s being cut leaving behind a tiny trace of gold wire and it has bounced onto my work (it brushed off)

Royal School of Needlework - Goldwork



Day 7 – as the bright check is cut into beads, it shatters and jumps all over the place. This is the lid of a jam pot so that when the beads jump, it’ll stay within the lid and not disappear.   I should have put the lid on tissue paper, instead of straight onto my black silk – everything has to be protected so that no dirty marks are left behind.

Read part 2 of my time at the Royal School of Needlework
and my completed goldwork piece.
